PFA

好好認識Everflon™ PFA

全系列,逐一細看。

比較所有型號

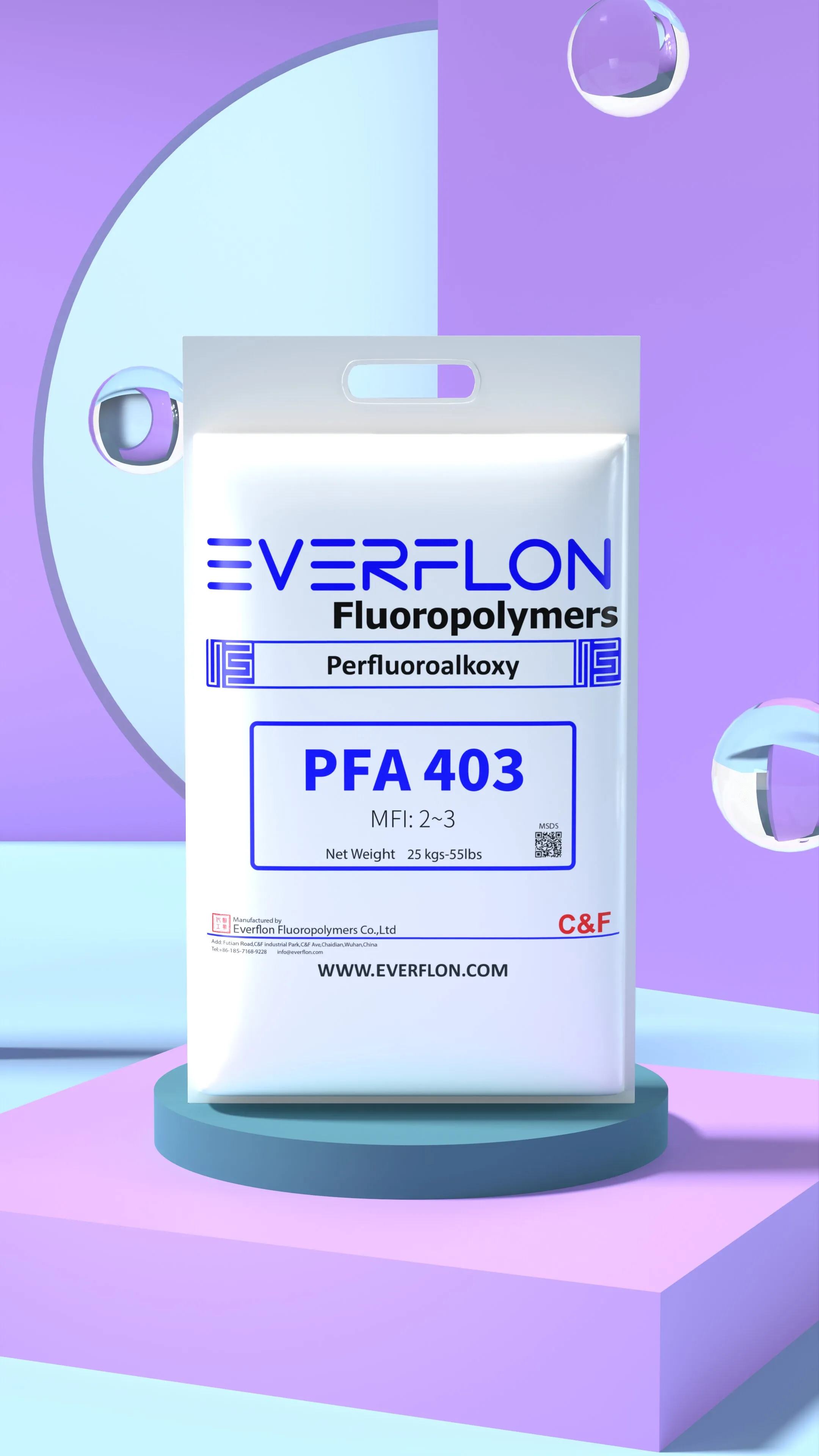

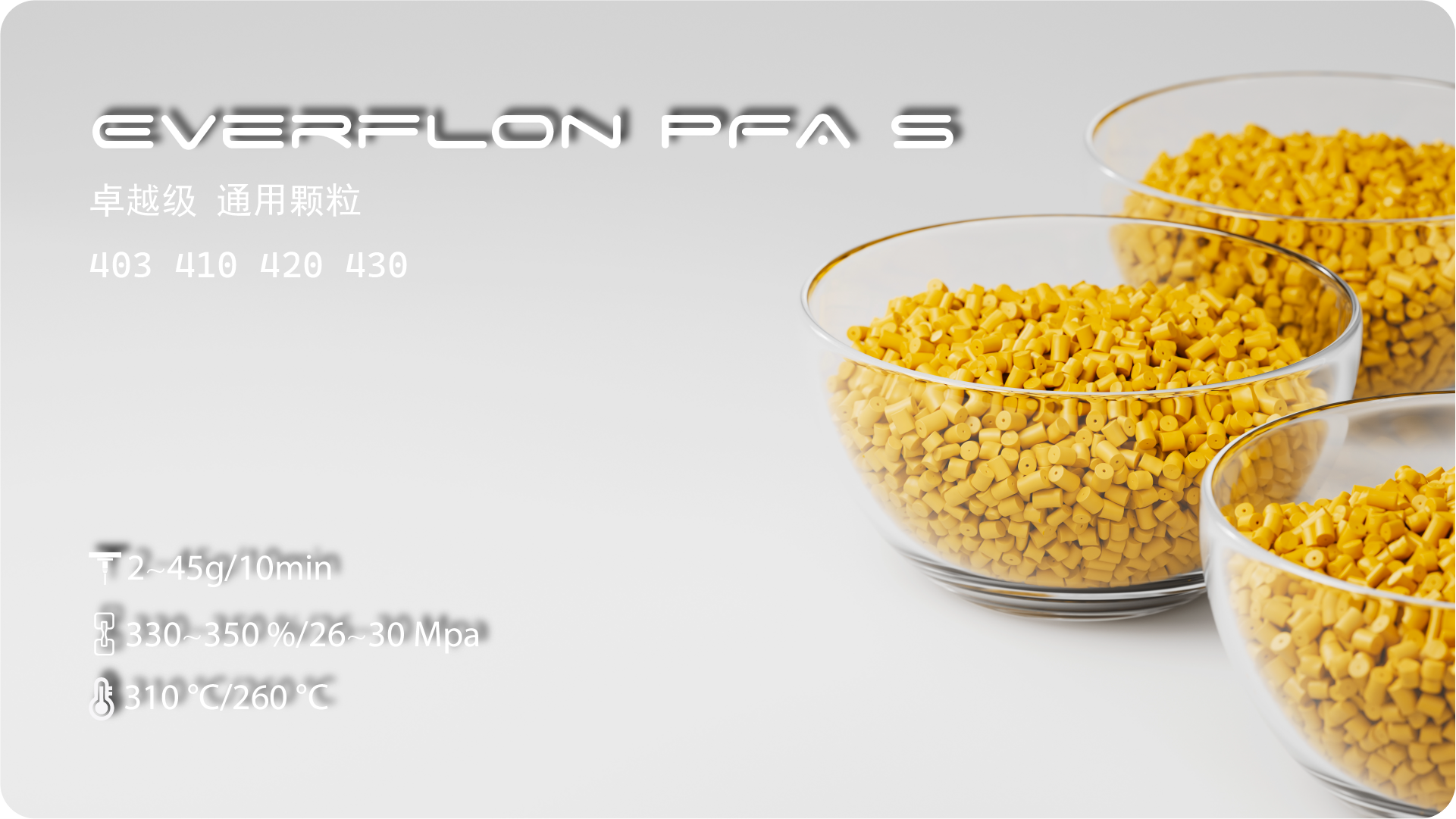

403410

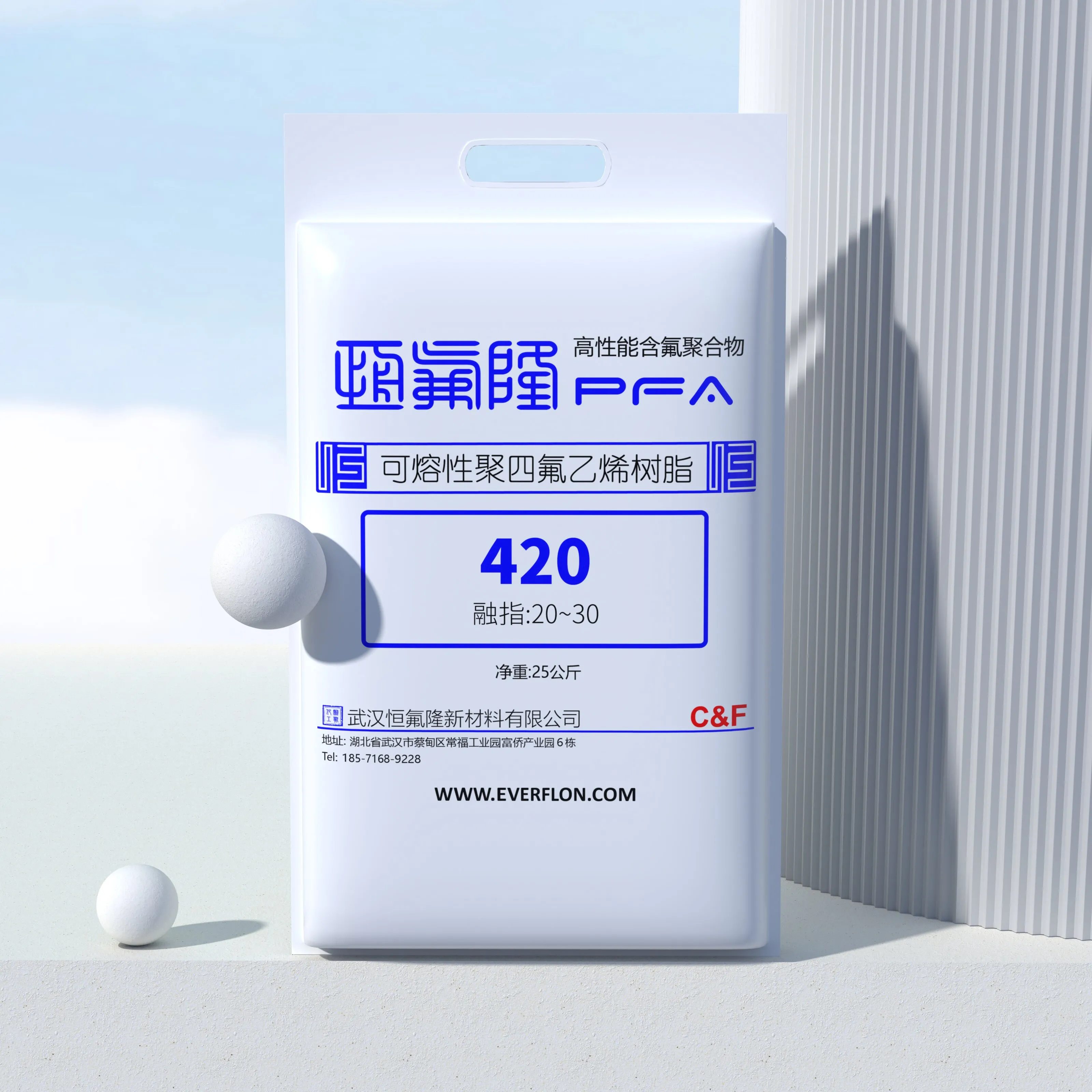

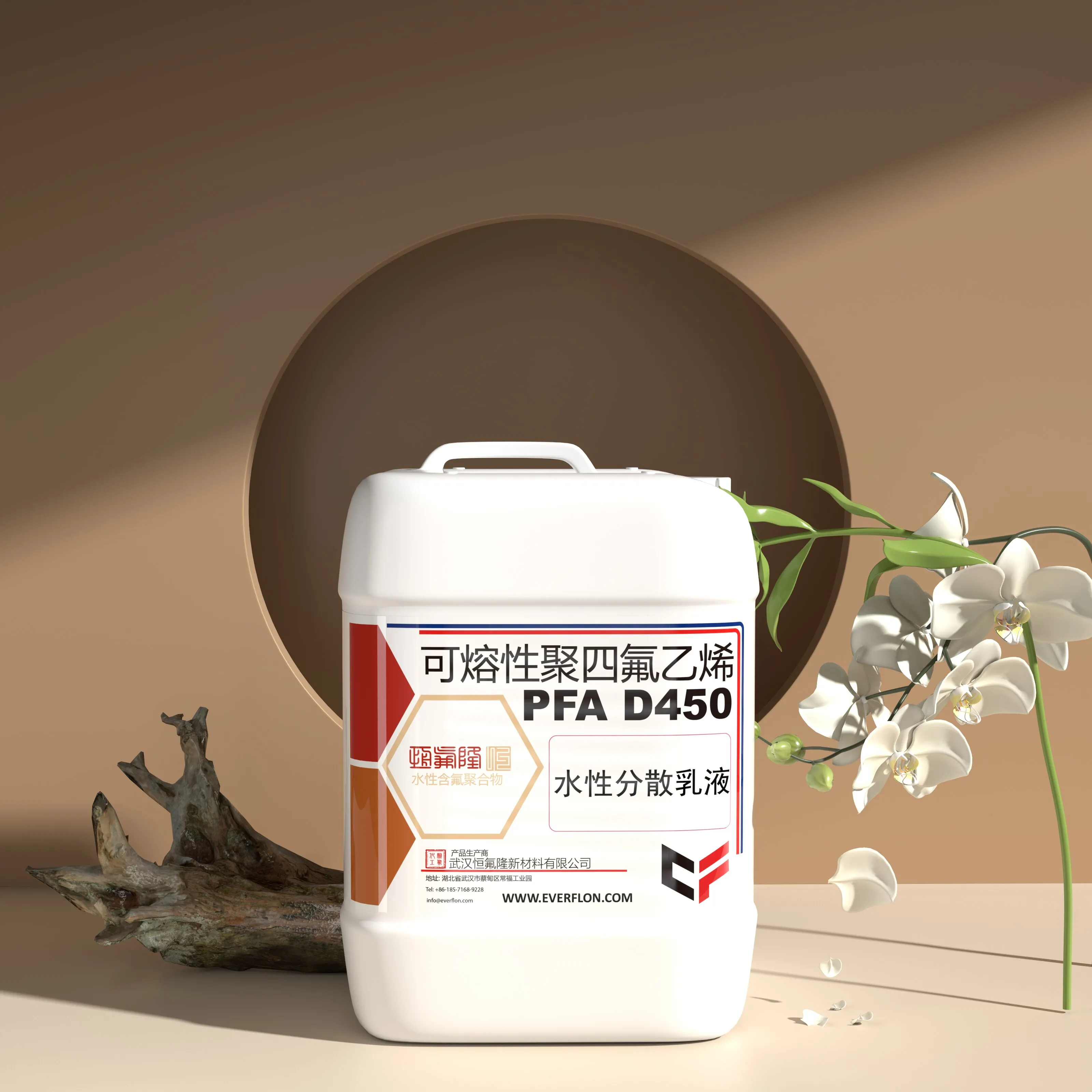

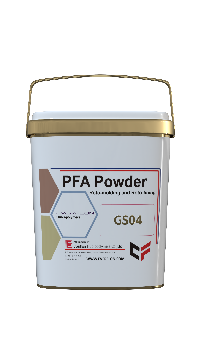

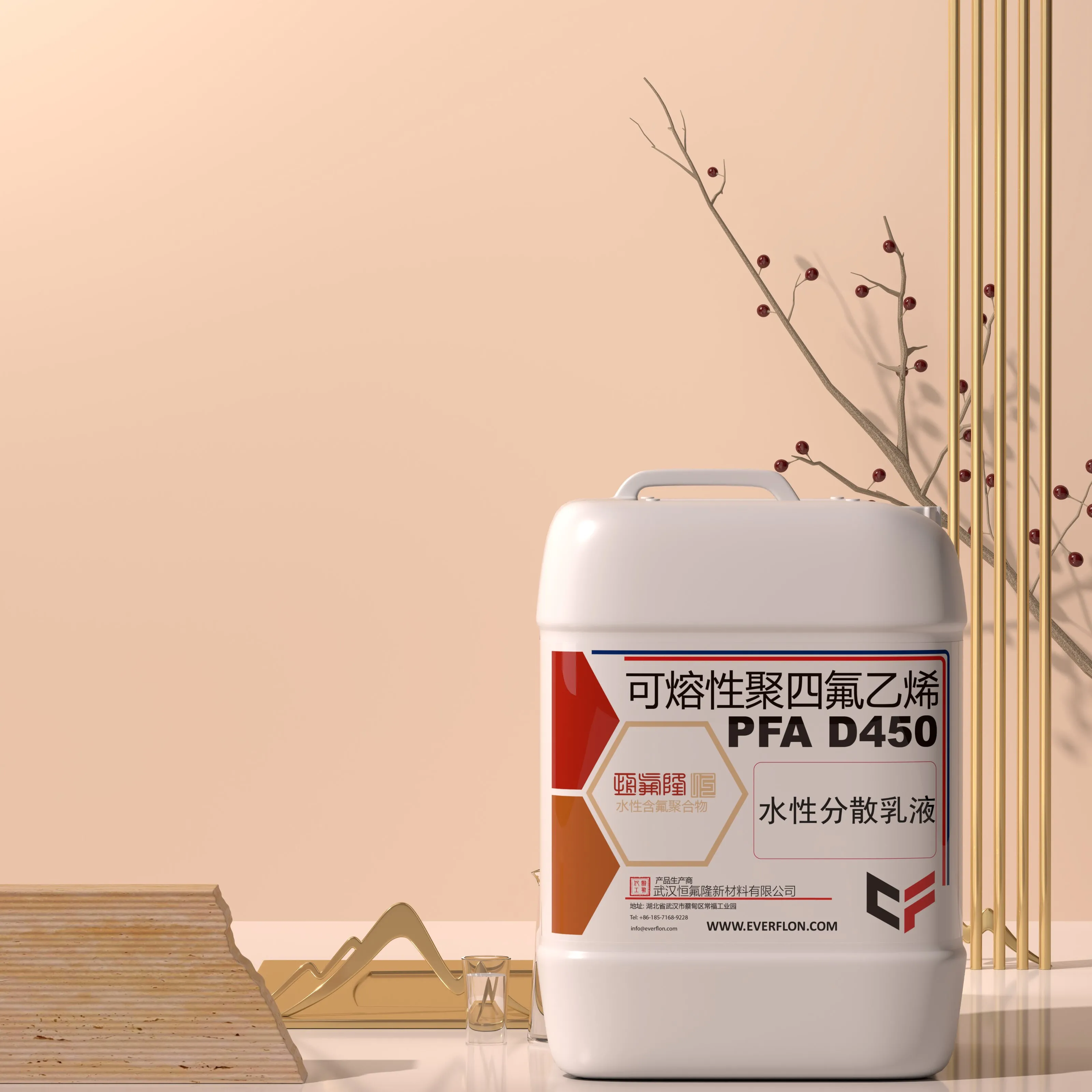

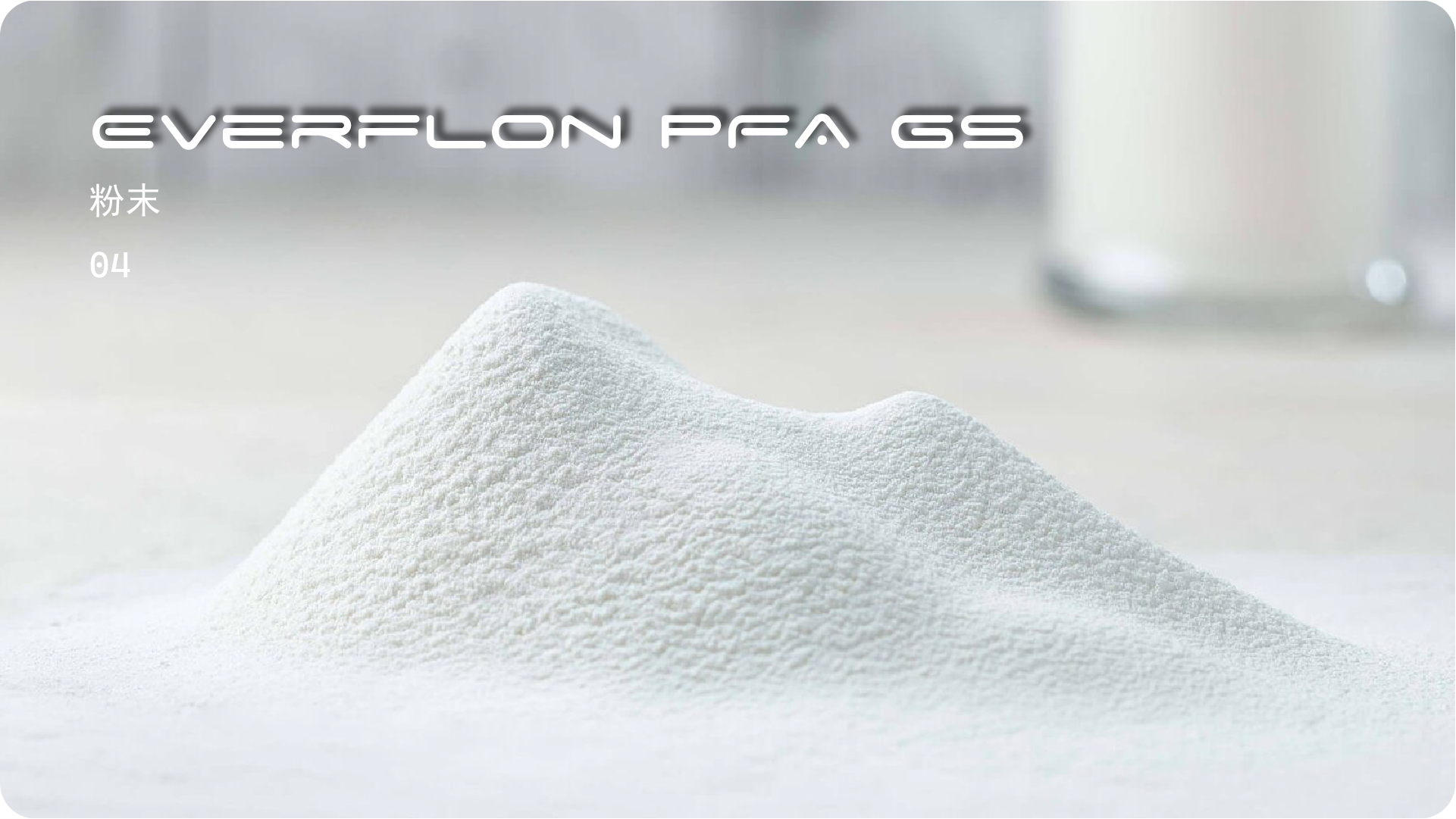

420430D450GS04

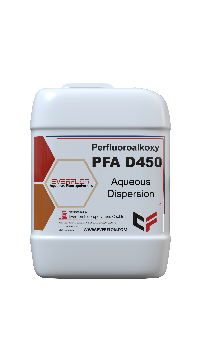

GranuleGranuleGranuleGranuleAqueous DispersionPowder

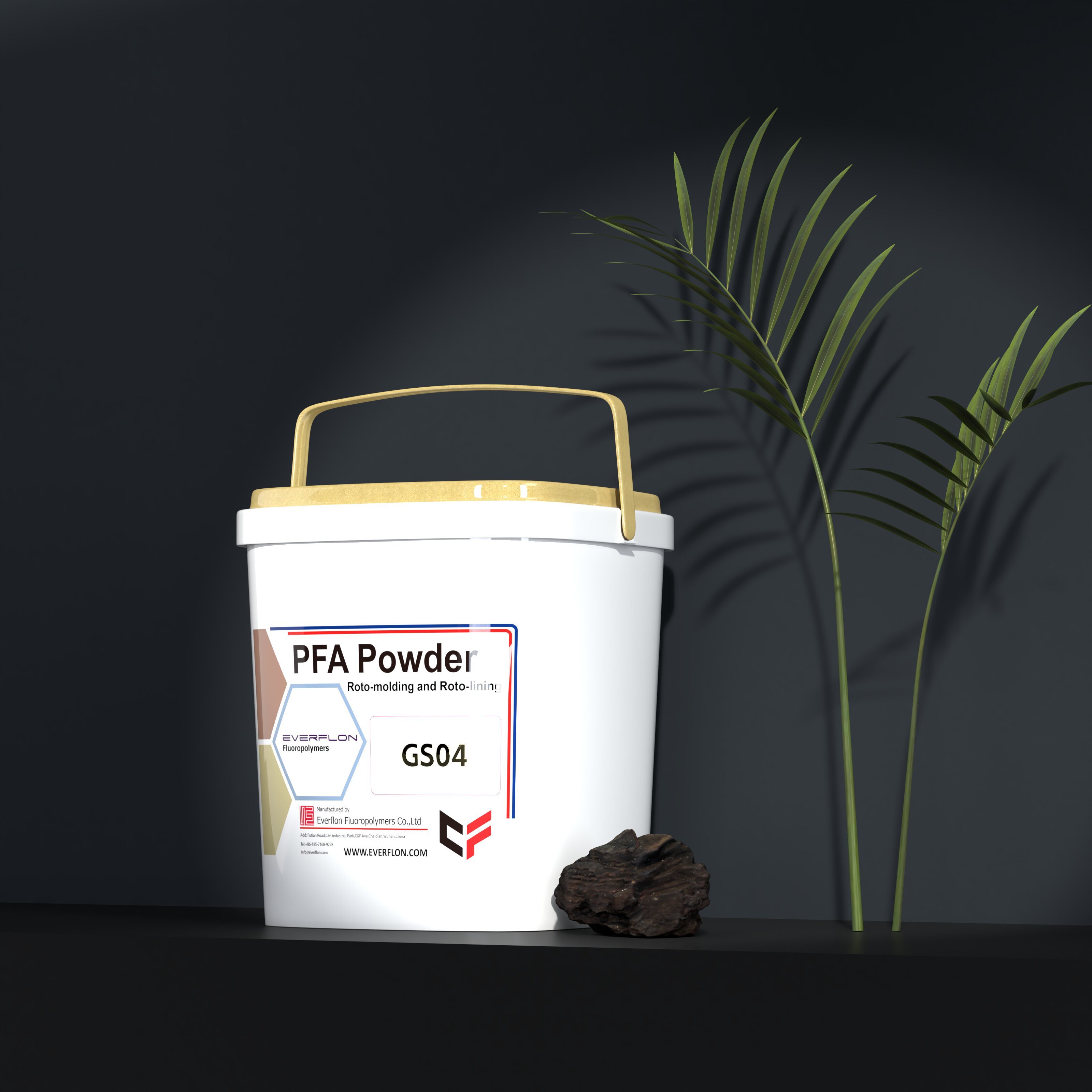

Low MFR resin for molding and extrusion applicationsMid-range MFR resin for molding and extrusion applicationsHigh MFR resin for molding and extrusion applicationsResin with superior electrical properties and high MFR50% Solid Content for Coating and ImpregationFree-flowing, high-purity roto-molding and roto-lining powde

Melt Flow Index

2~3g/10min

Melt Flow Index

6~14g/10min

Melt Flow Index

20~30g/10min

Melt Flow Index

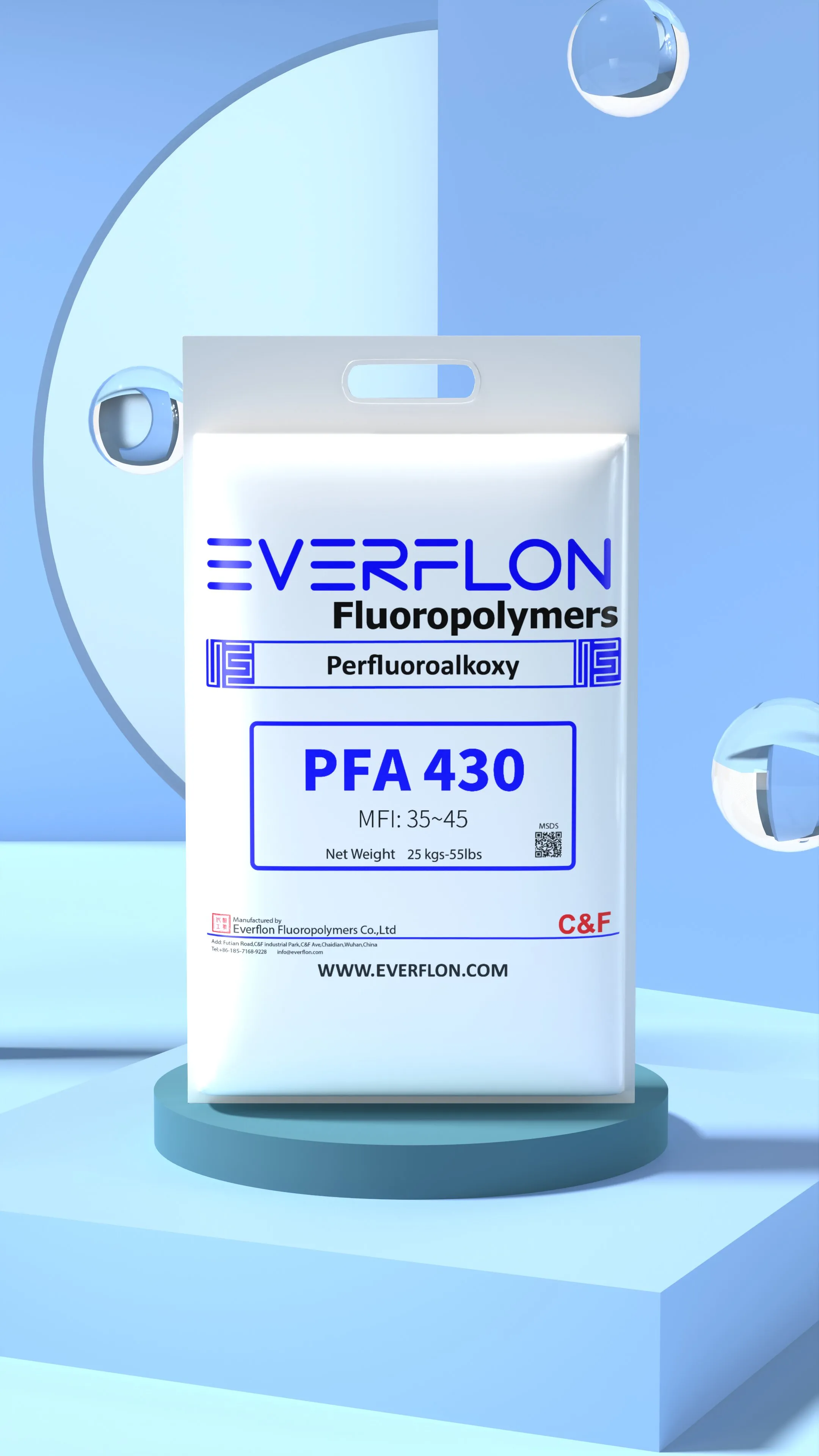

35~45g/10min


Melt Flow Index

20~30g/10min

Tensile Strength

30Mpa

Tensile Strength

28Mpa

Tensile Strength

24Mpa

Tensile Strength

24Mpa



Elongation at Break

350%

Elongation at Break

330%

Elongation at Break

330%

Elongation at Break

300%



Tubing

Pipe lining

Films

Injection-/blow-molded parts

Thin wall wire insulation

Intricate/small injection- molded parts

Tubing

Wire and cable

Injection- molded parts

Thin wall wire insulation

Intricate-/small injection- molded parts

Glass cloth coating

Metal coatings

Hollow parts

Complex geometries

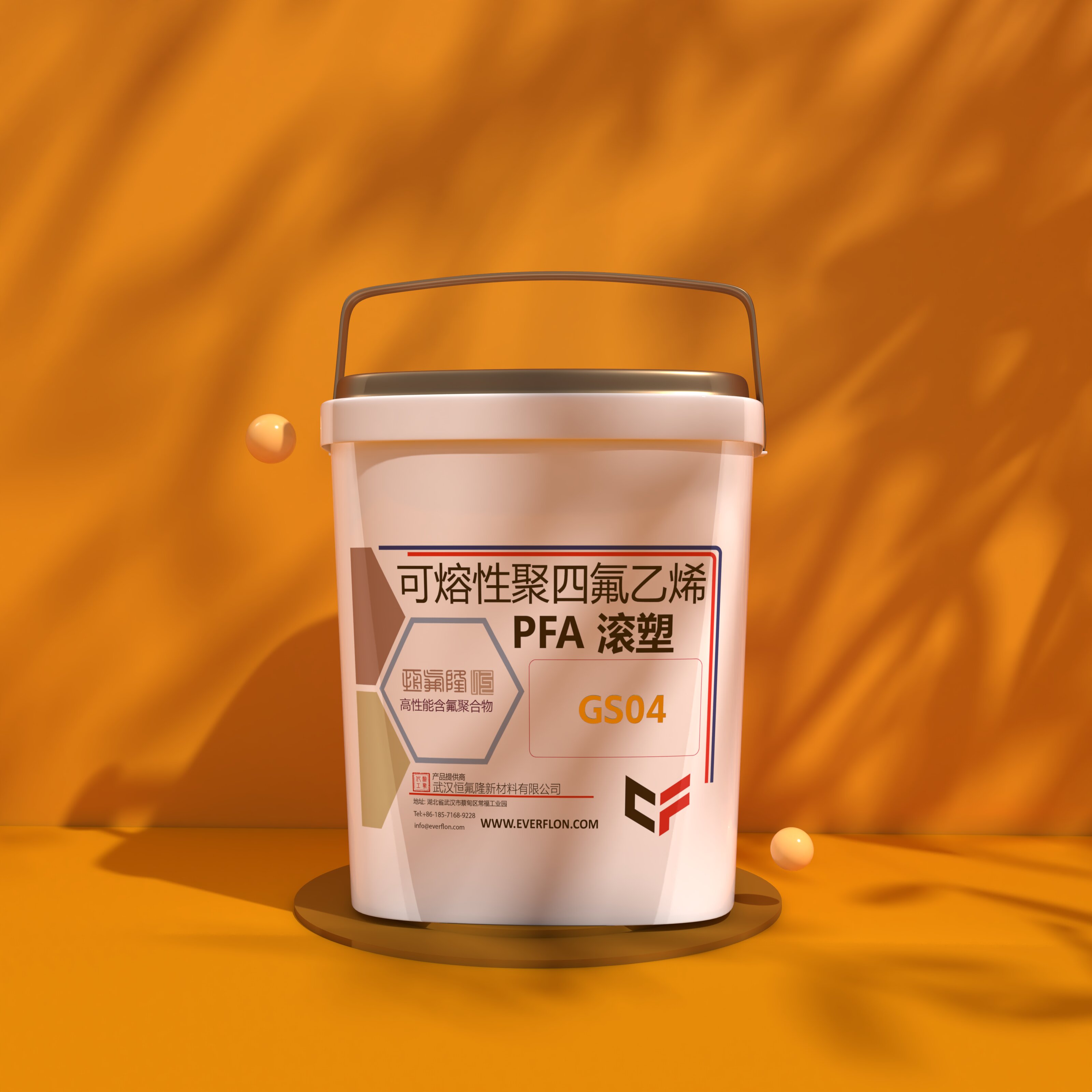

Lining

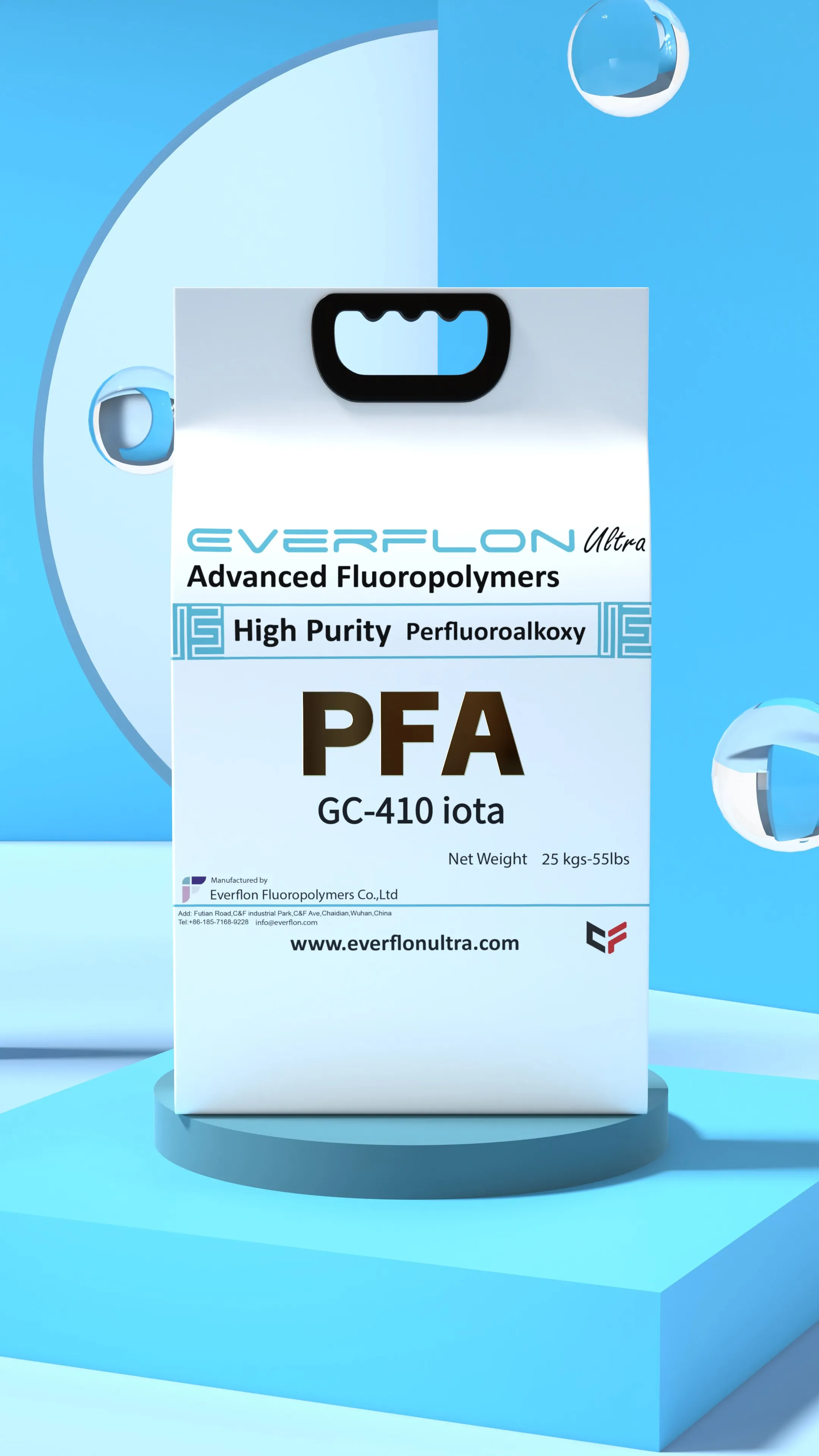

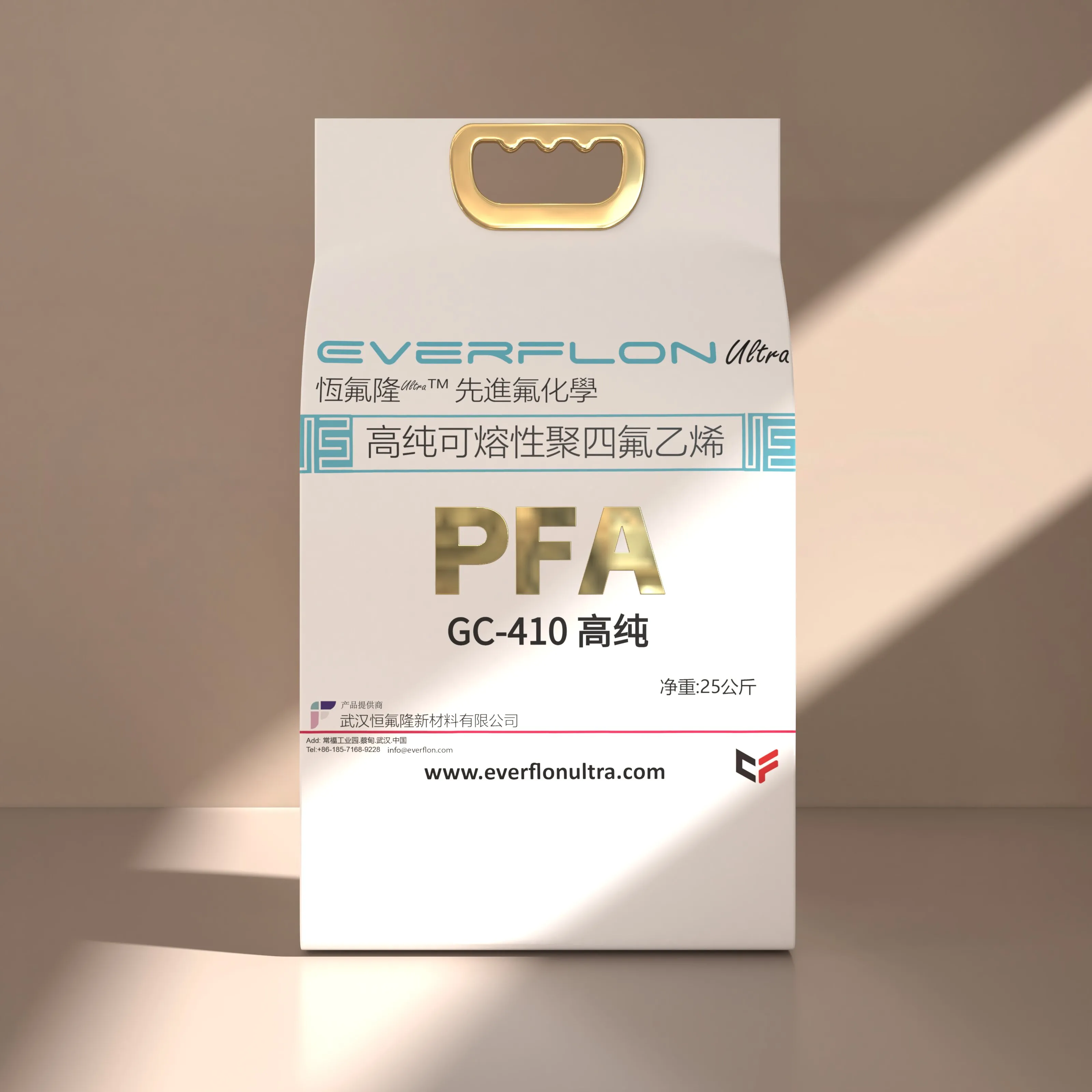

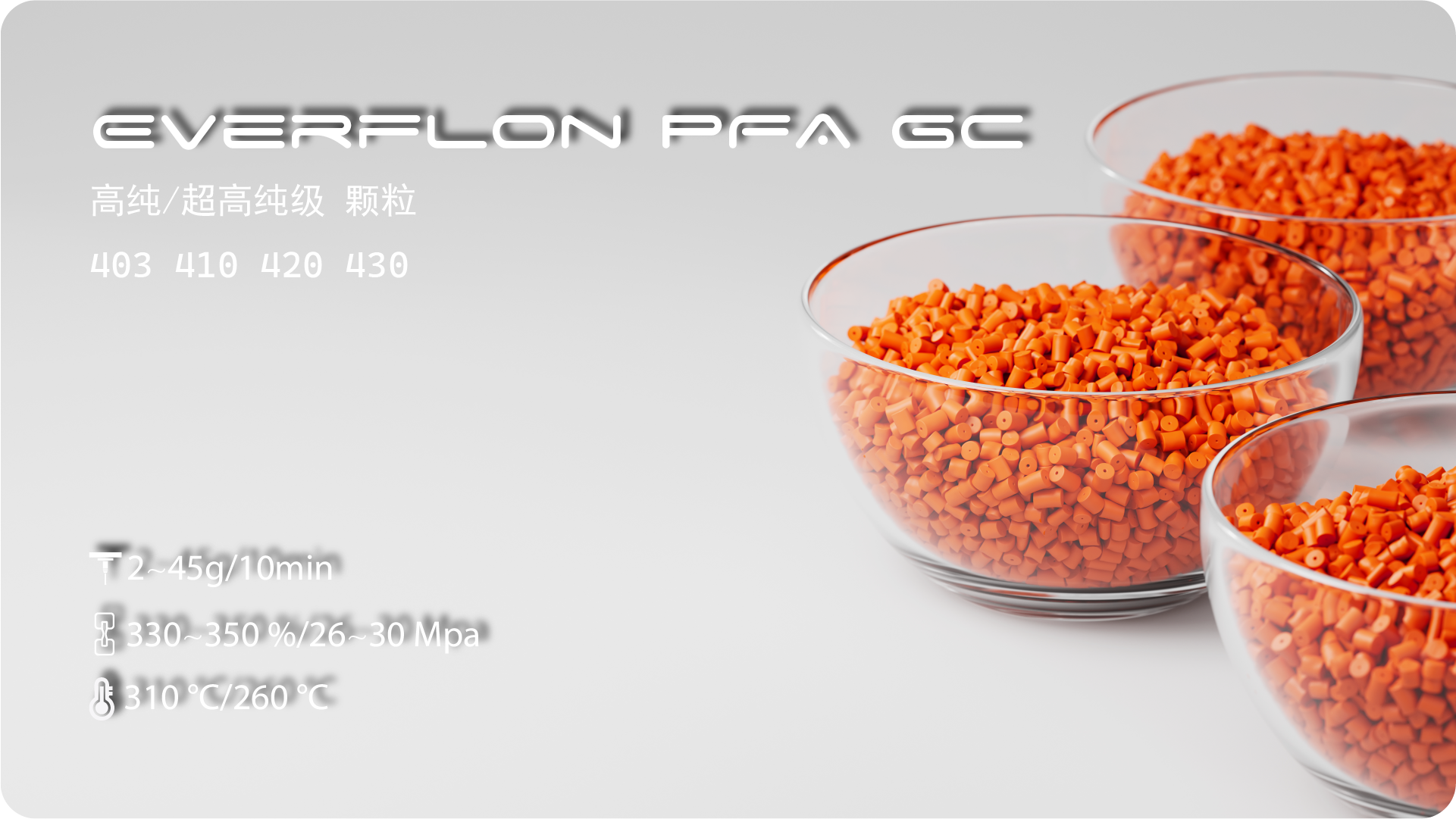

GC403GC410

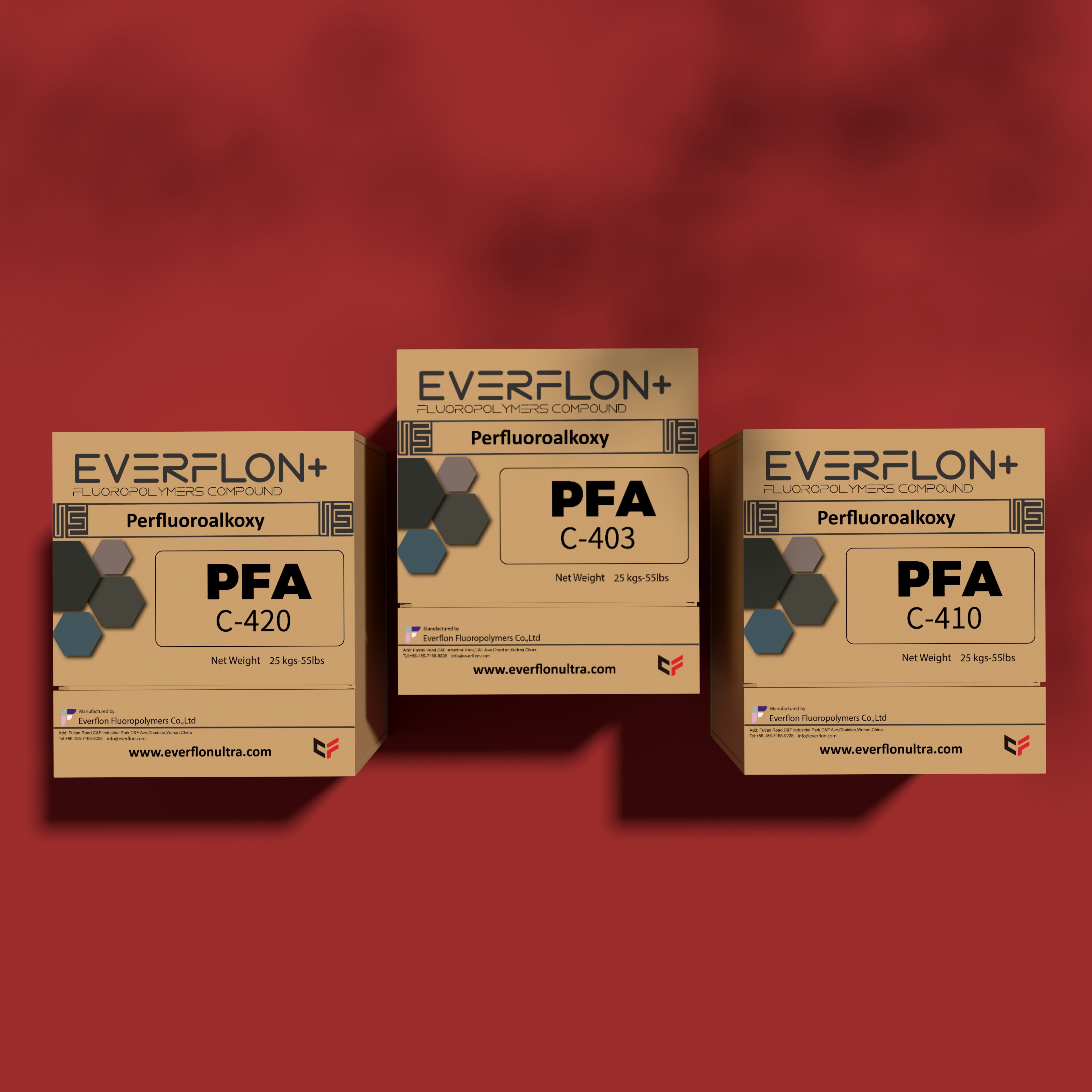

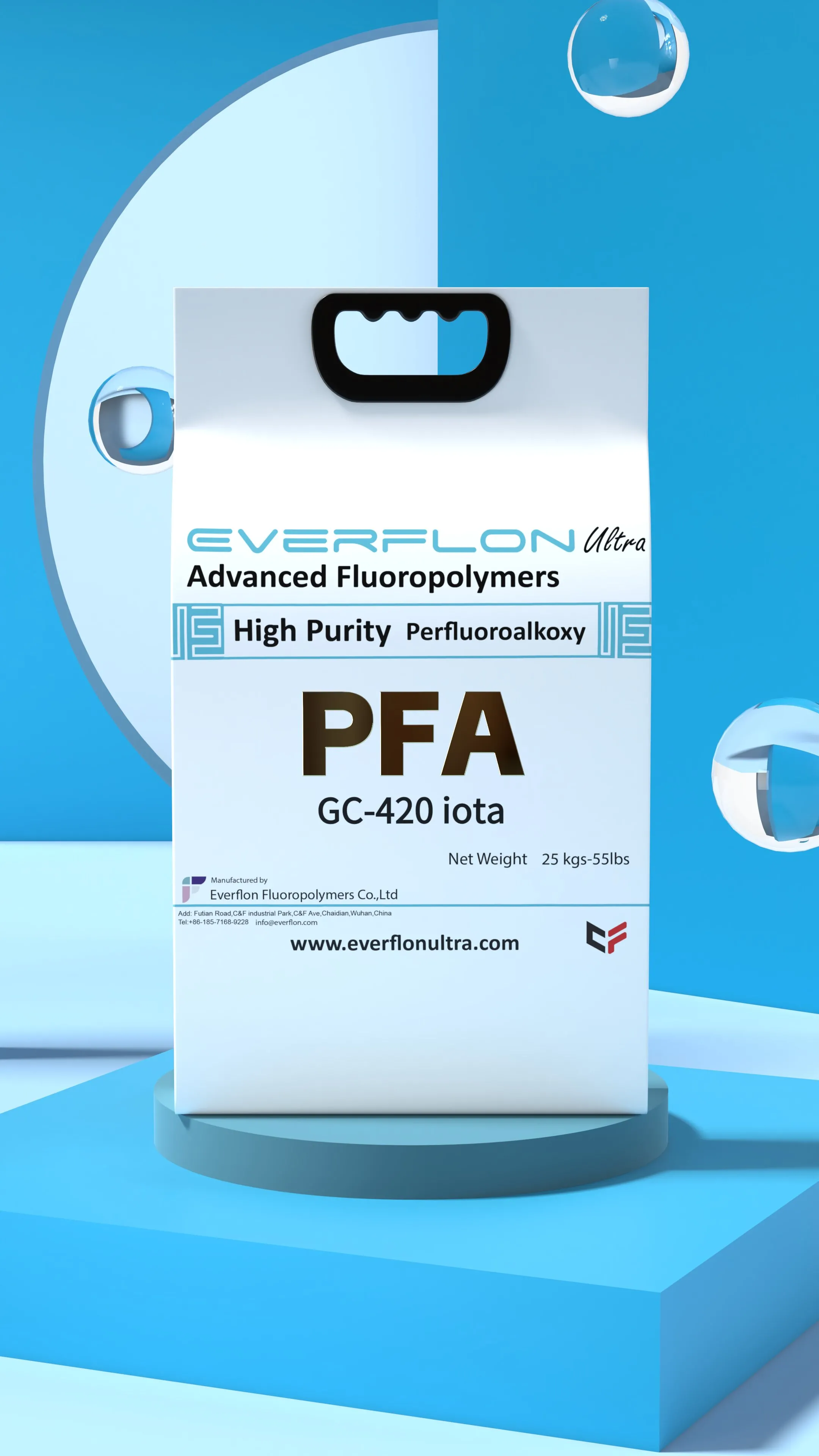

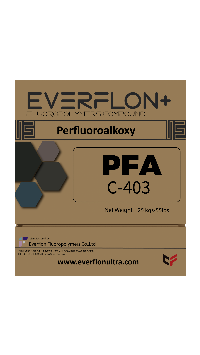

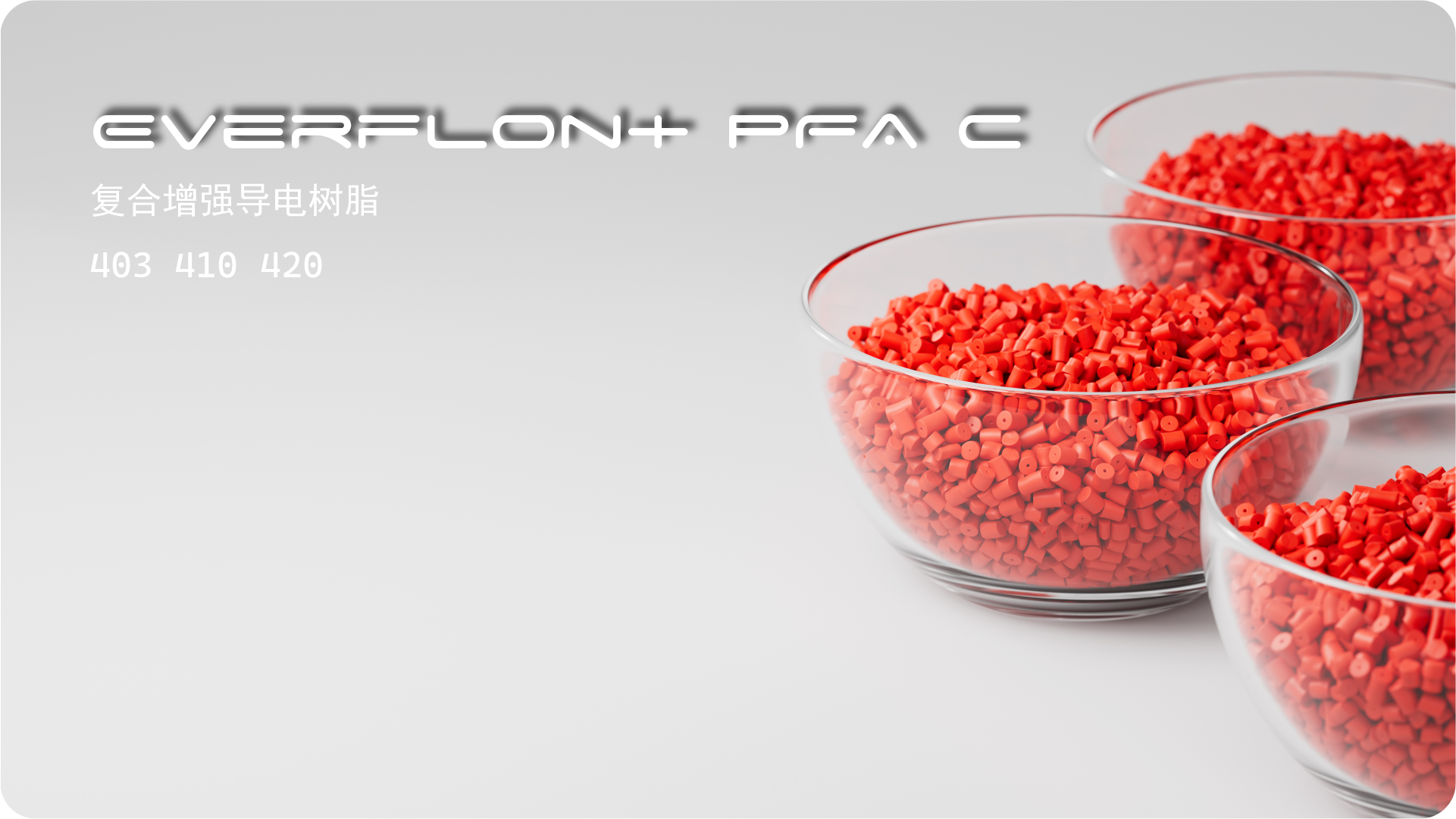

GC420C-403C-410C-420

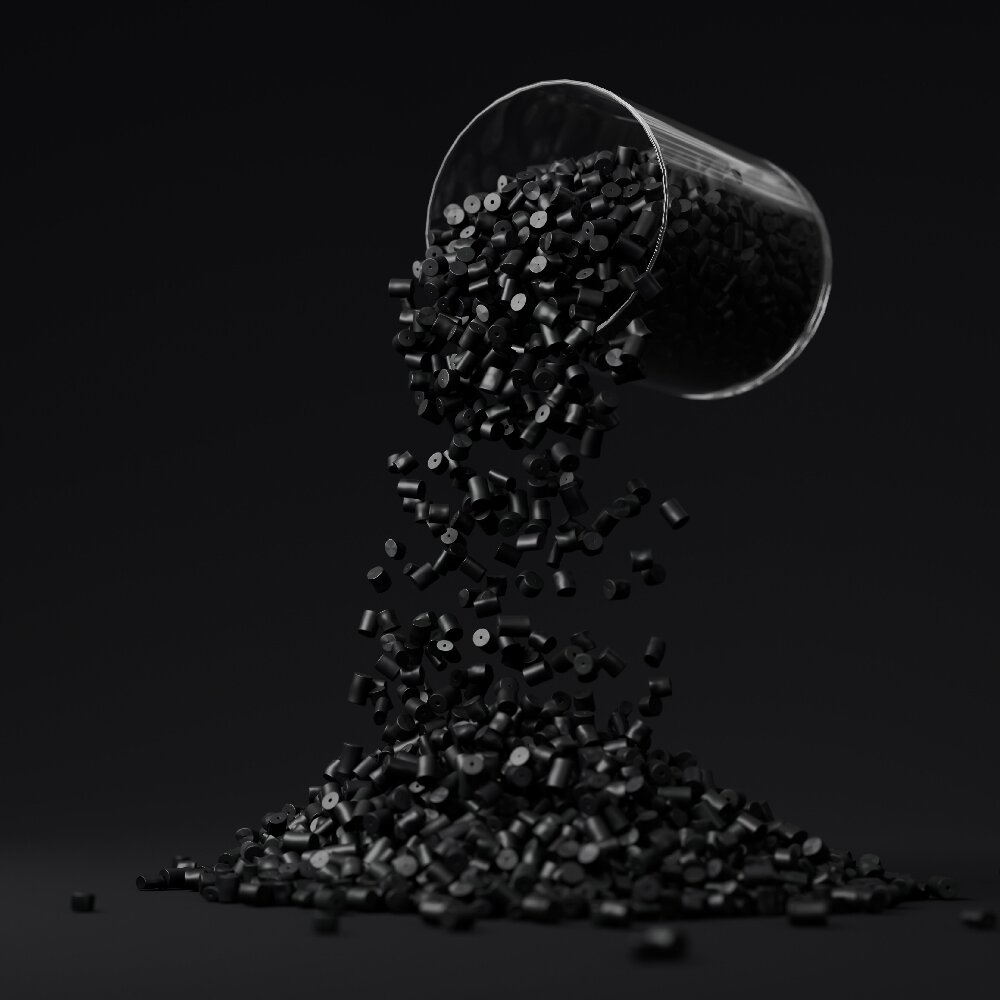

High Purity GranuleHigh Purity GranuleHigh Purity GranuleBlack GranuleBlack GranuleBlack Granule
Low MFR resin for molding and extrusion applicationsMid-range MFR resin with superior stress crack resistance for molding and extrusion applicationsHigh MFR resin for superior stress crack resistance for molding and extrusion applicationsLow MFR static dissipative resinMid-range MFR static dissipative resinHigh MFR static dissipative resin

Melt Flow Index

2~4g/10min

Melt Flow Index

6~14g/10min

Melt Flow Index

20~30g/10min

Melt Flow Index

2~4g/10min

Melt Flow Index

6~8g/10min

Melt Flow Index

12g/10min

Tensile Strength

30Mpa

Tensile Strength

28Mpa

Tensile Strength

24Mpa

Tensile Strength

30Mpa

Tensile Strength

30Mpa

Tensile Strength

30Mpa

Elongation at Break

350%

Elongation at Break

330%

Elongation at Break

330%

Elongation at Break

300%

Elongation at Break

300%

Elongation at Break

300%

Tubing and piping

Molded parts and linings

Sheet lining for vessels and chemical delivery systems in high purity applications

Injection molded parts and tubing in high purity applications

Injection molded parts in high purity applications (i.e., fittings, valve bodies, filter housings)

Tubing, linings, and molded parts that require static dissipative performance

Cables, tubing, linings, and molded parts that require static dissipative performance

Intricate-/small injection- molded parts
